IoT Platform

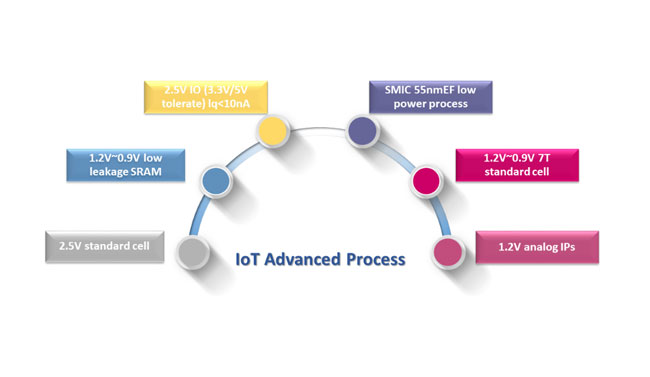

YouSiP-IoT is a comprehensive platform solution designed for emerging application as IoT based on SMIC 55nm low leakage (LL) and 130nm Mixed signal Low leackage(LL) process which can provide embedded non-volital flash memory as well. This solution integrates ARM Cortex Mx series MCU and CEVA TeakLite or MM series DSP, involves WiFi, Bluetooth/BLE interfaces, which can connect to a series of different sensors. YouSiP-IoT platform can assist customer to reduce the processing delay time, enhance the data security, improve the data rate and reduce power consumption of their SoC design, which is adopted in battary power supply environment as smart home, IoT and wearable devices with excellent low power managment.

IoT Hardware Platform Solution

• Flexible computing power

        - M0, M3, M3+DSP

• Internal resource

        - SRAM

        - ROM

• DMA engine

• Embedded flash

• Rich IO interfaces

• Embedded PMU

• Integrated RF solutions

        - Complete BLE + NFC

• SIP MEMS/RF

        - MEMS, WiFi, Zigbee, etc

• Easy to customize

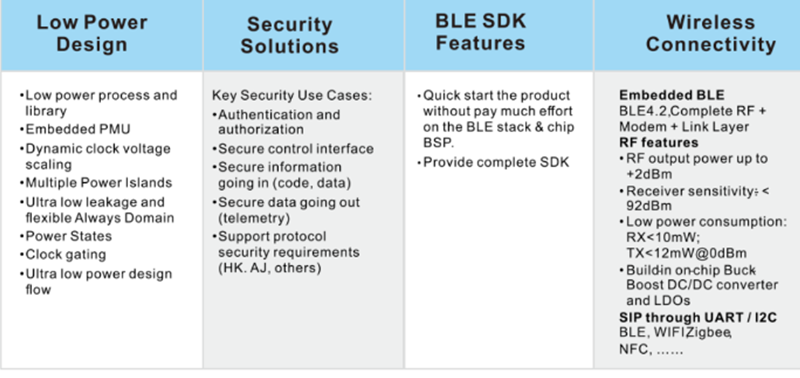

Low Power Design For IoT

Power Management Unit (PMU) for IoT

General Description

Power-consumption will affect the IoT’s functionality, and power management has become one of the most important and differentiating feature in the low power application such as wearable. Many devices have multiple internal voltages (e.g., 5 V, 3.3 V, 1.8 V, etc.) and sources of external power to charge their batteries including USB. Brite's Power Management Unit (PMU) provides high efficiency power conversion that minimizes energy loss, and is used in battery-powered devices, smart appliances, healthcare, home automation, consumer electronics, industrial automation.

Brite's PMU for complete low power management solution

• Low power DC-DC bulk

• Low power charge pump

• Low power LDO

Brite's PMU Example

(IoT Power Supply Domain Diagram for SMIC55nm)

Power Supply, 1.8 (0.9) ~ 5.5V

• Chargeable Li-ion battery 3 ~ 4.3V

• 5V charge solution: external charge controller

• Lithium coin-cell or 2 Alkaline batteries 1.8 ~ 3V

• USB Vbus 4.5 ~ 5.5V

IoT Companion Chip Solution

To differentiate customer's applications by voice recognition, finger print, gesture detection etc.

Sensor Hub/Fusion

• Analog

     - 4 Analog IO

     - Optional PGA

     - Programmable threshold

• Digital

     - Up to 6 triggers

DSP-CEVA TeakLite410 core

• High-Performance, Low-Power Audio/ Voice/ Sensing and Wireless Communication Apps

• Native 32-bit, variable 10-stage pipeline, fixed-point DSP architecture

• More powerful TL411



                              IoT Companion Chip Solution

IoT Development Tool and Environment

Evaluation Board with Brite MCU + WiFi/BLE module

EVB is provided to customers for early-stage system development

• All functions with ready peripheral

• Open example codes and driver



                                                                                                        YouSiP-IoT EVB

Security Solutions for IoT

Key Security Use Cases

• Authentication and authorization

• Secure control interface

• Secure information going in (code, data)

• Secure data going out (telemetry)

• Support protocol security requirements (HK. AJ, others)

HW Footprint Considerations

• Secure Boot ( include SW RSA, Hash)

• AES

• HASH

• TRNG

• PKA
